Automotive Electrical Testing Equipment with Modular Design High-Precision Measurement and Multi-Standard Compatibility

Automotive Electrical Testing Equipment with Modular Design High-Precision Measurement and Multi-Standard Compatibility

Nazwa marki: HongCe
Numer modelu: HCUN01
MOQ: 1set
Cena £: 1set
Warunki płatności: T/T, L/C, D/P.
Zdolność do zaopatrzenia: 1set
Szczegółowe informacje
Miejsce pochodzenia:
CHINY
Orzecznictwo:
calibration certificate(cost additional)
Zakres temperatur termopary:
100 ° C.
Napięcie zasilania:
380 V 50 Hz
Wymiary:
2000 mm * 1000 mm * 1500 mm
Waga:
Około 350 kg
Kolor:
Niebieski szary
Gwarancja:
Rok
Szczegóły pakowania:
Sklejka
Podkreślić:

Modular Design Automotive Electrical Testing Equipment

,

High-Precision Measurement Universal Test Bench

,

Multi-Standard Compatibility Performance Test Bench

Opis produktu

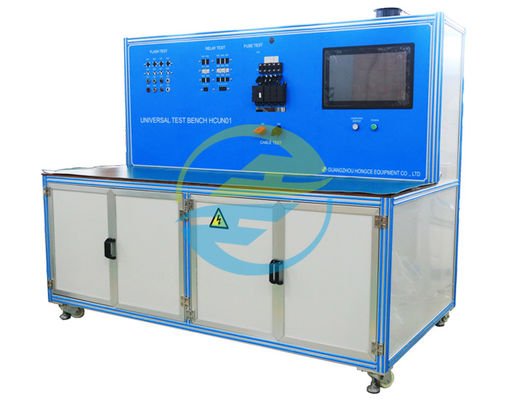

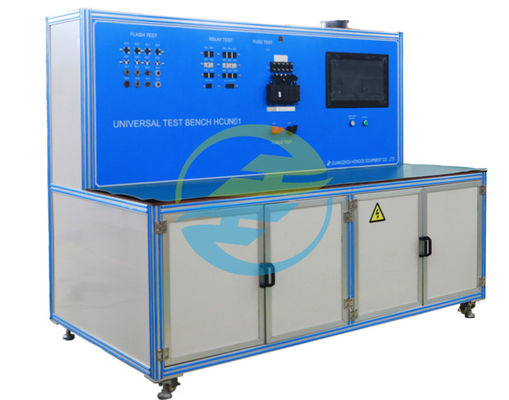

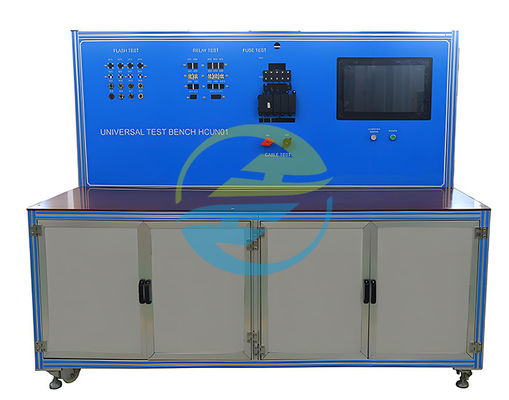

Automotive Electrical Components Universal Testing Equipment
Comprehensive Performance Test Bench for Electrical Parts, Safety Reliability & Durability Testing
The universal test bench for automotive electrical components is a high-performance testing platform that integrates advanced measurement and control technologies with extensive industry experience. This equipment can simulate a variety of harsh environmental and electrical conditions, enabling comprehensive performance evaluation and durability testing of key components such as automotive wiring harnesses, relays, sensors, and fuses.
Key Features:
  • Modular Design: Compatible with a variety of electrical components, flexible configuration, and fast test mode switching.
  • High-Precision Measurement and Control: Utilizes advanced acquisition modules to ensure data authenticity and repeatability.
  • Multi-Standard Compatibility: Supports testing according to international standards such as IEC, ISO, and GB/T.
  • Intelligent System: Touchscreen operation + automatic test report generation.
  • Safety Protection: Built-in overcurrent and overvoltage protection ensures the safety of both the device and the device under test.
Reference Standards:
Standard Description
JIS D 5011 Relay Arrangement and Function Assignment
JIS D 5010 Relays
JIS D5707 Flashers
SAE J1494 Battery Booster Cables
ISO 8820 Blade-Type TYBE Fuses
DIN 7281 Low-Voltage Fuses
SAE J 554 Glass Fuses
SAE J1888 High-Voltage Fuses
