Stainless Steel IEC60884-1 Standard Plug Socket Tester for Finger Access Protection and Electrical Safety Testing

Stainless Steel IEC60884-1 Standard Plug Socket Tester for Finger Access Protection and Electrical Safety Testing

Nazwa marki: HongCe
Numer modelu: HT-I07
MOQ: 1 ZESTAW
Cena £: Negocjowalne
Warunki płatności: T/T, akredytywa
Zdolność do zaopatrzenia: 50 zestawów miesięcznie
Szczegółowe informacje
Miejsce pochodzenia:
Chiny
Orzecznictwo:
Calibration certificate(cost additional)
Średnica sondy:
12mm
Średnica przegrody:
50mm
Grubość przegrody:
5mm
Długość sondy:
80
Materiał sondy:
Stal nierdzewna
Gwarancja:
1 rok
Kolor:
Czarny
Standard:
IEC60884-1
Szczegóły pakowania:
Pudełko aluminiowe
Podkreślić:

Stainless Steel Plug Socket Tester

,

IEC60884-1 Standard Electrical Safety Test Probe

,

Finger Access Protection IEC Test Fixture

Opis produktu
IEC Standard Plug Socket Tester for Finger Access Protection
This electrical safety test probe is designed for plug and socket compliance testing, serving as a human contact simulation tool strictly defined by international standards. During testing, this indicator assesses whether plugs, sockets, and similar electrical accessories pose a risk of access to live parts under normal use or foreseeable misuse.
Product Applications
  • Electric shock protection testing for plugs and sockets
  • Structural safety assessment of electrical accessories
  • Safety verification during the new product design phase
International Reference Standards
  • IEC 60529 Clause 12: Protection against access to hazardous parts
  • IEC 60884-1 Clause 10.1: Protection against electric shock
  • IEC 60335-1 Clause 8: Protection against access to live parts
  • IEC 60950/IEC 62368 Accessibility of hazardous voltages
  • IEC 61032 Test probe B / Test probe 11 dimensional requirements
Technical Specifications
Parameters / Model HT-I07
Name Rigid Finger Probe
1 20 -0.05
2 80±0.2
3 R2±0.05
4 S4±0.05
5 37° -10'
6 14° -10'
7 Ф12 -0.05
8 Ф50
9 5±0.5
10 ----
Frequently Asked Questions
Q1: Can this test fixture be used by third-party testing organizations?
Yes, its dimensions and structure strictly comply with IEC requirements, making it suitable for laboratory use.
Q2: Can you provide calibration or testing reports?
Factory inspection instructions are available, and third-party calibration is supported.
Q3: Do you support customized sizes?
Yes, customization is available according to customer testing standards.
Q4: Can it be used with other plug-in socket testers?
Yes, it is commonly used in complete IEC test fixture systems.
Q5: What is the lead time?
Sufficient stock ensures fast delivery!
Product Images

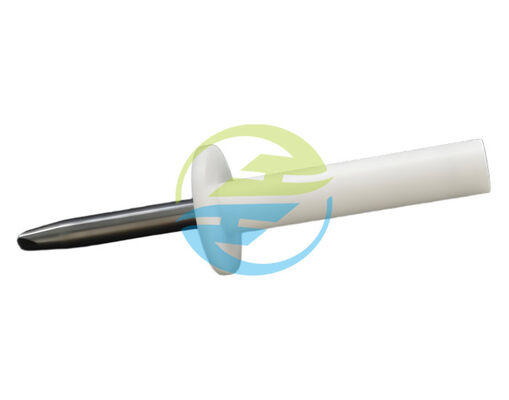

Stainless Steel IEC60884-1 Standard Plug Socket Tester for Finger Access Protection and Electrical Safety Testing 0
IEC Standard Plug Socket Tester
Product Specification Diagram

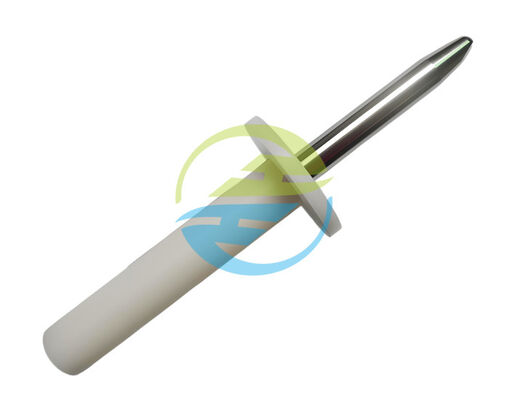

Stainless Steel IEC60884-1 Standard Plug Socket Tester for Finger Access Protection and Electrical Safety Testing 1
Technical Specification Diagram
