| Nazwa marki: | HongCe |
| Numer modelu: | LT-3 |
| MOQ: | 1 zestaw |
| Cena £: | Negocjowalne |
| Warunki płatności: | T/T, akredytywa |
| Zdolność do zaopatrzenia: | 10 zestawów miesięcznie |

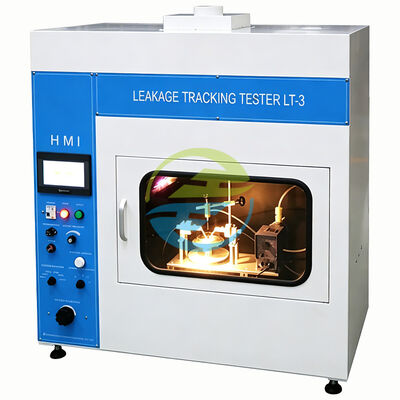

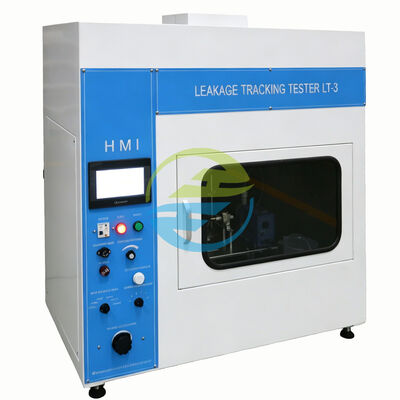

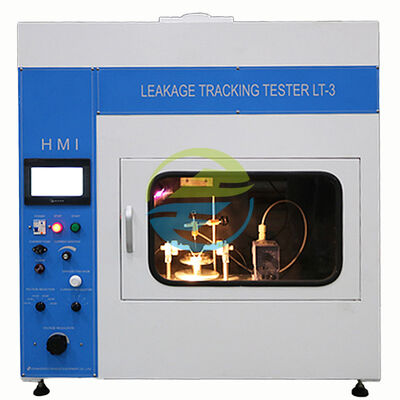

Leakage Tracking Tester for CTI & PTI Evaluation | IEC 60112 Flammability Testing Equipment for Insulating Materials
When electrical insulation materials are exposed to moisture, dust, or conductive contamination over time, surface tracking can gradually lead to insulation failure, carbonization, or even unexpected product shutdowns. The HongCe Leakage Tracking Tester is engineered to help manufacturers identify these risks before products reach the market.
| Item | Specification |
|---|---|
| Product Name | Leakage Tracking Tester |
| Product Category | Flammability Testing Equipment |
| Test Standard | IEC 60112 |
| Test Method | CTI / PTI Determination |
| Applicable Materials | Solid Insulating Materials |
| Electrode Material | Platinum Electrodes |
| Electrode Distance | 4mm ±0.1mm |
| Electrode Pressure | 1.0N ±0.05N |
| Test Voltage Range | Adjustable |
| Droplet Interval | Standard Controlled |
| Electrolyte Dropping Device | Automatic |
| Control Method | Electrical Control |
| Observation System | Internal Illumination |
| Test Chamber Material | Corrosion Resistant Structure |
| Safety Protection | Protective Interlock |
| Power Supply | AC 220V / 50Hz |
| Suitable Environment | Laboratory Use |
| Test Object Thickness | Standard Compatible |
| Failure Judgment | Tracking / Flame Criteria |
| Display Function | Test Status Monitoring |
| Installation Type | Bench Type |
| Operation Mode | Manual + Automatic Assistance |
| Application Industry | Electrical & Electronics Testing |
The Core Technology Behind Reliable Tracking Tests
HongCe focuses on testing stability and repeatability, which are essential in insulation material evaluation. The LT-3 Leakage Tracking Tester integrates:
What is CTI testing?
CTI (Comparative Tracking Index) testing evaluates the resistance of insulating materials against electrical tracking under contaminated conditions.
What is the difference between CTI and PTI?
CTI determines the maximum voltage at which a material withstands tracking failure, while PTI verifies material performance at a specified proof voltage.
Which industries require leakage tracking testing?
Electrical appliances, connectors, electronics, cable products, switches, and insulation material manufacturers commonly require this testing.
Is the equipment compliant with IEC 60112?
Yes. The LT-3 Leakage Tracking Tester is designed according to IEC 60112 testing requirements.
Can HongCe provide technical support?
Yes. HongCe provides installation guidance, operation assistance, technical consultation, and long-term after-sales support.
Is OEM customization available?
Yes. HongCe supports customized configurations based on laboratory and production testing requirements.
