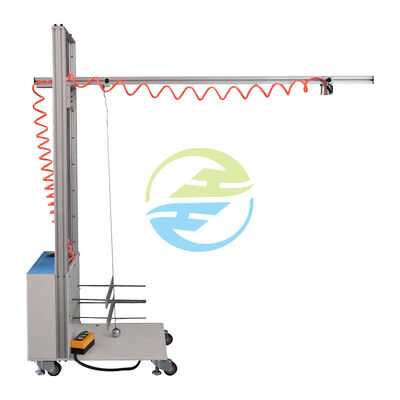

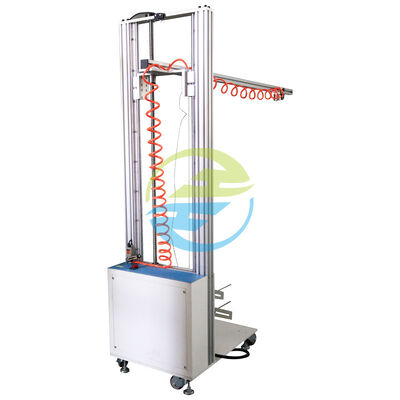

Steel Ball Impact Testing Machine for IEC 60068-2-75 Mechanical Strength Verification of Electrical Products
The Steel Ball Impact Testing Machine is a precision-engineered impact testing apparatus designed to evaluate the mechanical strength and impact resistance of electrical equipment enclosures, lighting products, household appliances, electronic devices, and other products requiring compliance with international safety standards.
Uses a precisely manufactured 500±25g steel ball with a diameter of 50mm to reproduce standardized mechanical impacts specified by IEC standards.
The release height can be adjusted between 0.5m and 1.5m, allowing multiple test conditions according to different product requirements.
Ensures the steel ball impacts the designated test point consistently for reliable repeatability.
Constructed with industrial-grade materials for long service life and stable performance.
User-friendly design enables operators to complete testing efficiently without complex programming.
| Item | Specification |
|---|---|
| Product Name | Steel Ball Impact Test Apparatus |
| Model | SH-12 |
| Test Method | Free-fall steel ball impact |
| Steel Ball Diameter | 50 mm |
| Steel Ball Weight | 500 ± 25 g |
| Steel Ball Material | Hardened Steel |
| Drop Height Range | 0.5 m – 1.5 m |
| Height Adjustment | Manual Adjustable |
| Impact Direction | Vertical |
| Release Method | Mechanical Release |
| Test Positioning | Adjustable |
| Frame Material | Industrial Metal Structure |
| Operating Mode | Manual |
| Sample Type | Electrical and Electronic Products |
| Compliance Standard | IEC 60068-2-75 |
It is primarily designed according to IEC 60068-2-75 requirements for mechanical impact testing.
The apparatus uses a 50 mm diameter steel ball.
500 ±25 g.
Yes. The drop height is adjustable from 0.5 m to 1.5 m.
Electrical enclosures, household appliances, lighting products, consumer electronics, and various industrial products.
Yes. Customized designs are available according to customer testing requirements.
