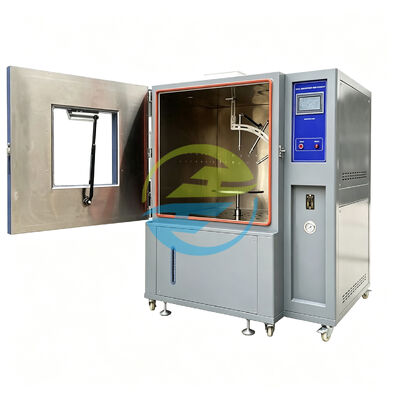

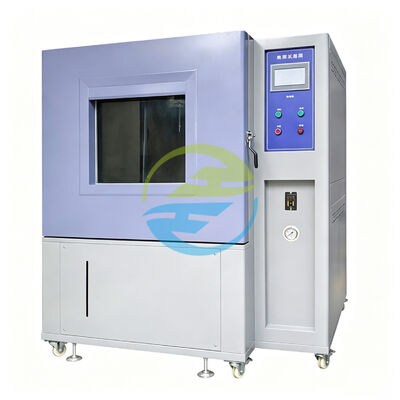

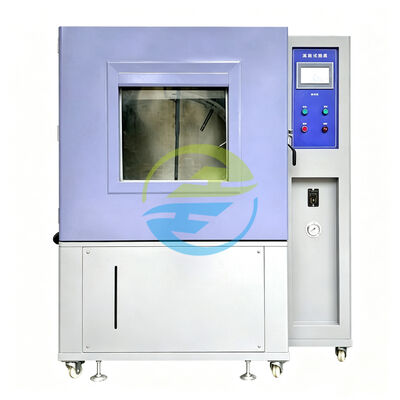

Environmental Rain Testing Equipment for Electronic, Automotive and Lighting Products
The High Pressure Rain Spray & Oscillating Tube IP Testing Equipment is designed for manufacturers and testing laboratories that require reliable environmental protection testing for products exposed to rain, water spray and high-pressure washing conditions.
Manufactured by HongCe, this system simulates high-temperature and high-pressure water environments to evaluate the sealing performance, durability and reliability of products during transportation, storage and real-world operation.
It is widely used for:
HongCe provides complete R&D, manufacturing and technical support services as a professional source factory specializing in IEC Testing Equipment and IP Testing Equipment.
Water ingress remains one of the leading causes of product failure in harsh operating environments.
Whether your products are installed outdoors, used in industrial applications or exposed to high-pressure cleaning processes, verifying their water protection capability is essential before entering global markets.
The HongCe High Pressure Rain Spray Testing Chamber is developed to simulate:
The equipment allows manufacturers to conduct comprehensive environmental testing according to internationally recognized standards and significantly improves product quality assurance during product development and factory inspection processes.
Product Categories:
| Standard | Clause | Description |
|---|---|---|
| IEC 60529 | IPX9 | Protection against high-pressure and high-temperature water jets |
| ISO 20653 | IPX9K | Road vehicle protection against water ingress |
| IEC 60068-2-18 | Water Test Methods | Environmental testing requirements |
| IEC 60598-1 | Relevant Waterproof Tests | Luminaires environmental testing |
| IEC 60335-1 | Environmental Protection Requirements | Household appliance waterproof testing |
| IEC 62262 | Applicable Evaluation Requirements | Mechanical enclosure assessment |
| Parameter | Specification |
|---|---|
| Model | HC-IPTE-004 |
| Working Chamber Size | W1000 * H1000 * D1000 mm |
| Overall Dimensions | W1450 * H1750 * D1500 mm |
| Spray Angles | 0°, 30°, 60°, 90° |
| Number of Spray Nozzles | 4 |
| Ambient Water Temperature | Room Temperature ~85°C |
| Spray Distance | 100~200 mm |
| Spray Pressure | 8~10 MPa |
| Sample Rotation Speed | 1~5 r/min |
| Sample Load Capacity | 15 kg |
| High Temperature Flow Rate | 14~16 L/min |
| High Temperature Spray Temperature | 80°C ±5°C |
| Spray Flow Rate | 14~16 L/min |
| Spray Distance (High Temp) | 10~15 cm |
| Spray Duration | 30 seconds per angle |
| Water Jet Pressure | 80~100 Bar (8000~10000 kPa) |
| Turntable Diameter | 300 mm |
| Test Time | 30 Seconds (4 Positions Total 120 Seconds) |
Hongce provides:
Our engineering team provides customers with comprehensive support from product selection to laboratory setup and compliance testing.
At HongCe, we believe that reliable testing equipment creates reliable products.
For over a decade, we have been dedicated to helping manufacturers, laboratories, certification bodies, and quality inspection teams achieve international compliance and improve product reliability. From concept design to finished equipment, every testing system is developed with practical engineering requirements and real-world applications in mind.
Today, HongCe testing systems are trusted by customers in Southeast Asia, Europe, the Middle East, Africa, Oceania, and many other international markets. Our equipment is widely used by manufacturers, research institutions, third-party laboratories, and quality control departments seeking accurate, repeatable, and standards-compliant testing solutions.
What makes HongCe different is not only our manufacturing capability, but also our commitment to supporting customers throughout the entire project lifecycle—from equipment selection and customization to installation guidance, technical training, and long-term service support.
Whether you are building a new testing laboratory, upgrading production quality control procedures, or preparing products for international certification, HongCe is ready to provide professional and cost-effective testing solutions tailored to your requirements.
