2000Pa Helium Leak Testing Equipment For Ceramic Component Of Relay 5×10-11pa·m3/s

2000Pa Helium Leak Testing Equipment For Ceramic Component Of Relay 5×10-11pa·m3/s

  • 2000Pa Helium Leak Testing Equipment For Ceramic Component Of Relay 5×10-11pa·m3/s
  • 2000Pa Helium Leak Testing Equipment For Ceramic Component Of Relay 5×10-11pa·m3/s
2000Pa Helium Leak Testing Equipment For Ceramic Component Of Relay 5×10-11pa·m3/s
Szczegóły Produktu:
Miejsce pochodzenia: Chiny
Nazwa handlowa: HongCe
Orzecznictwo: Calibration Certificate(cost additional)
Numer modelu: HJ113
Zapłata:
Minimalne zamówienie: 1 zestaw
Cena: Negotiation
Szczegóły pakowania: Sklejka
Czas dostawy: 3 miesiące
Zasady płatności: T/T
Możliwość Supply: 1 zestaw na miesiąc
Kontakt
Szczegółowy opis produktu
Gwarancja: 12 miesięcy Przedmiot obrabiany: Ceramiczny Składnik Przekaźnika
Ciśnienie napełniania opakowania: 2 ~ 2,5 kPa Ciśnienie opróżniania opakowania: -2~-3 kPa
Gaz znakujący: Hel Szybkość wycieku alarmu: 1,44E-4mbar.L/S
Cykl: ≤2 min Tryb testowy: Ssanie pistoletu
High Light:

Ceramic Component Helium Leak Testing Equipment

,

11pa·m3/s Helium Leak Testing Equipment

Helium Leak Testing Equipment For Ceramic Component Of Relay 5×10-11pa·m3/S



This equipment is used to test the sealing performance of ceramic components of new energy car relay products.



Overview of Helium Leak Testing Equipment:

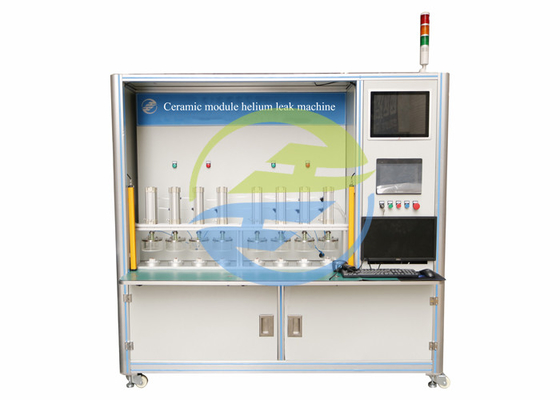

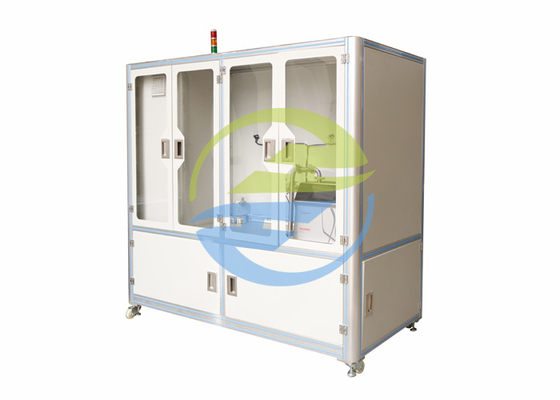

The leak testing equipment for ceramic components is displayed and controlled by touch screen and button switch. Workpieces are placed manually. Two stations are designed, and each station detects four products at the same time. Products with different specifications can be detected by changing the leak detection fixture. When the system detects the leak, the workpiece to be detected is manually placed on the leak detection tool, and the leak detection tool is communicated with the leak detector through the leak detection switching valve. After the workpiece is placed and positioned, the cylinder descends to push the helium nozzle to press the workpiece. Then start the auxiliary pump and start vacuumizing the interior of the workpiece. Then the leak detector continues to take time to clear the background. When the leak detector reaches the background value, the equipment is sprayed with helium.The leak detector judges the leak rate according to the helium gas infiltration.



Technical parameters of Helium Leak Testing Equipment:

Min detectable leak rate: 5×10-11pa·m3/s.
Leak rate display range: 1×10-2 -----1×10-11Pa· m3/s
Start time: ≤ 100s
Response time: ≤ 0.3s
Max pressure of leak detector: 2000Pa
Power requirement: AC220V±10%/50Hz
Leakage rate unit: Pa·m3/s, ppm,mbar·l/s,atm.cc/s
Display interface: Large screen 7.0 inch touch screen display, clear and easy to understand operation interface.



2000Pa Helium Leak Testing Equipment For Ceramic Component Of Relay 5×10-11pa·m3/s 0
